2025 Rikulau · RD

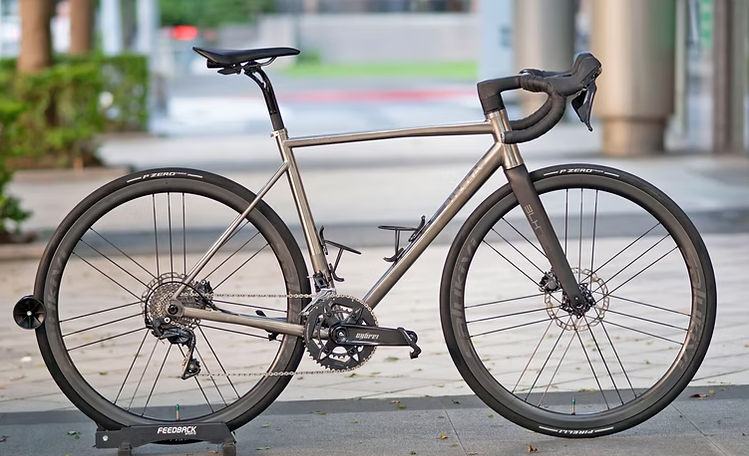

2025 Rikulau Master Ti 3-2.5 geometry
Full frame geometry for the 2025 Rikulau Master Ti 3-2.5, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) |
|---|---|---|---|---|---|---|---|---|---|
| XS | 507.8 | 368 | 74.5 | 71 | 111 | 509 | 450 | 728.6 | 68 |
| S | 523 | 378 | 74.5 | 71 | 127 | 523 | 490 | 757.9 | 68 |
| M | 539.9 | 387 | 74 | 71.5 | 143 | 541.8 | 520 | 780.6 | 68 |
| L | 559.8 | 396 | 74 | 71.5 | 164 | 557 | 550 | 805.6 | 68 |
| XL | 579.7 | 405 | 73.5 | 72 | 183 | 577 | 570 | 824.6 | 68 |
All measurements in millimetres unless marked (°) for angles.
