2025 Rikulau · G

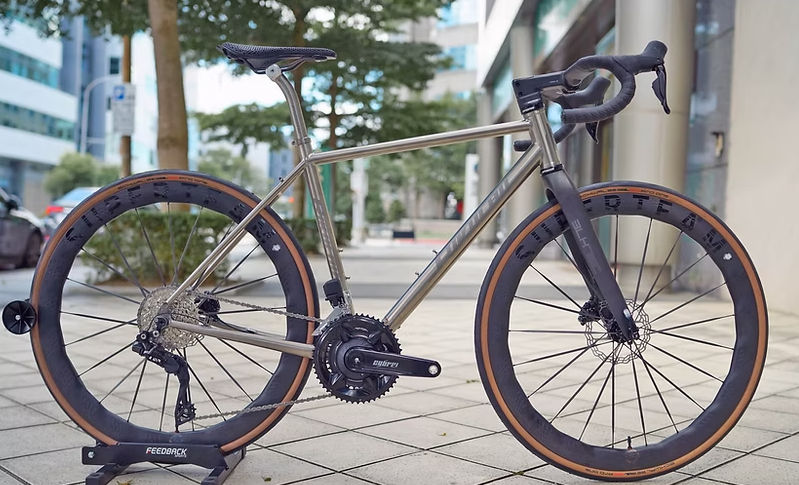

2025 Rikulau ili ili Ti 3-2.5 geometry
Full frame geometry for the 2025 Rikulau ili ili Ti 3-2.5, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) |
|---|---|---|---|---|---|---|---|---|---|
| XS | 530 | 360 | 74 | 70.5 | 95 | 512 | 430 | 726 | 73 |
| S | 546 | 370 | 74 | 71 | 110 | 526 | 470 | 754 | 73 |
| M | 565 | 381 | 74 | 71 | 130 | 543 | 510 | 782 | 73 |
| L | 581 | 390 | 73.5 | 71.5 | 145 | 562 | 540 | 805 | 73 |
| XL | 600 | 399 | 73.5 | 71.5 | 165 | 577 | 570 | 828 | 73 |
| XXL | 619 | 407 | 73.5 | 71.5 | 185 | 590 | 610 | 857 | 73 |
| XXXL | 638 | 416 | 73.5 | 71.5 | 205 | 605 | 640 | 881 | 73 |
All measurements in millimetres unless marked (°) for angles.
