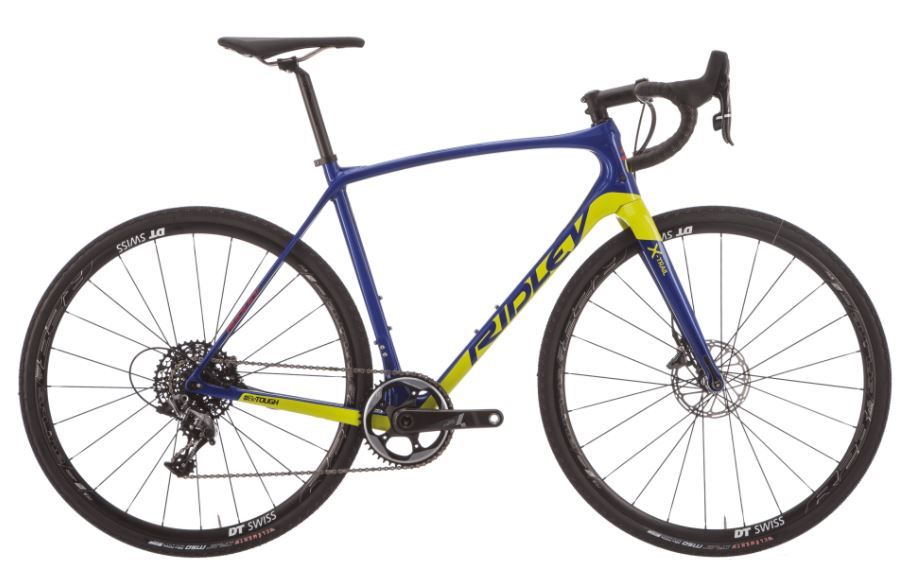

2018 Ridley X-Trail Carbon geometry
Full frame geometry for the 2018 Ridley X-Trail Carbon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 520 | 376 | 75 | 70.3 | 100 | 515 | 450 | 74 | 420 | 999 |
| XS | 542 | 375 | 74.5 | 71 | 120 | 525 | 480 | 74 | 420 | 999 |
| S | 559 | 380 | 73.5 | 71 | 140 | 545 | 510 | 72 | 422 | 1024 |
| M | 584 | 386 | 73 | 71.5 | 165 | 565 | 540 | 72 | 422 | 1023 |
| L | 611 | 394 | 72.5 | 71.5 | 195 | 585 | 570 | 70 | 422 | 1039 |
| XL | 637 | 399 | 72.5 | 72 | 220 | 600 | 600 | 70 | 422 | 1049 |
All measurements in millimetres unless marked (°) for angles.
