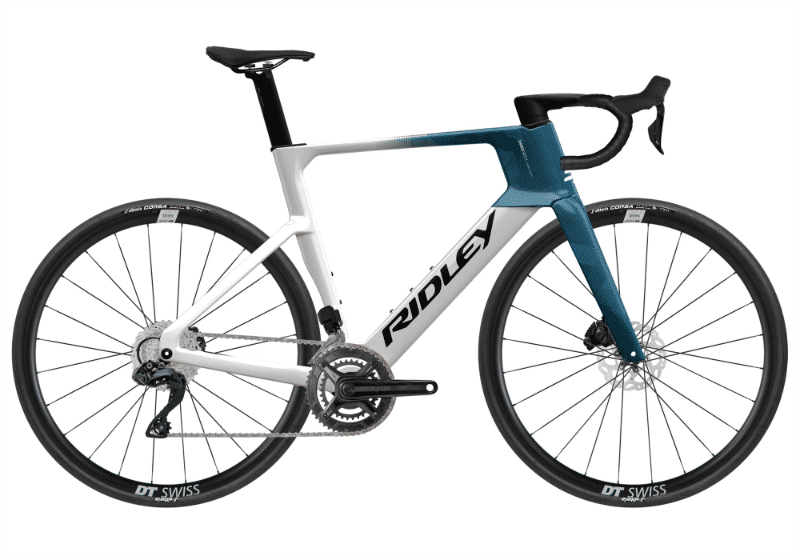

2026 Ridley e-Noah geometry
Full frame geometry for the 2026 Ridley e-Noah, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 532 | 382 | 75 | 72 | 130 | 525 | 485 | 72 | 775 | 410 | 988 | 50 |
| S | 546 | 394 | 74.5 | 72.5 | 145 | 545 | 510 | 70 | 800 | 410 | 1000 | 50 |
| M | 565 | 403 | 74 | 72.5 | 165 | 565 | 540 | 70 | 830 | 410 | 1015 | 50 |
| L | 589 | 416 | 74 | 72.5 | 190 | 585 | 560 | 70 | 900 | 410 | 1035 | 50 |
All measurements in millimetres unless marked (°) for angles.
