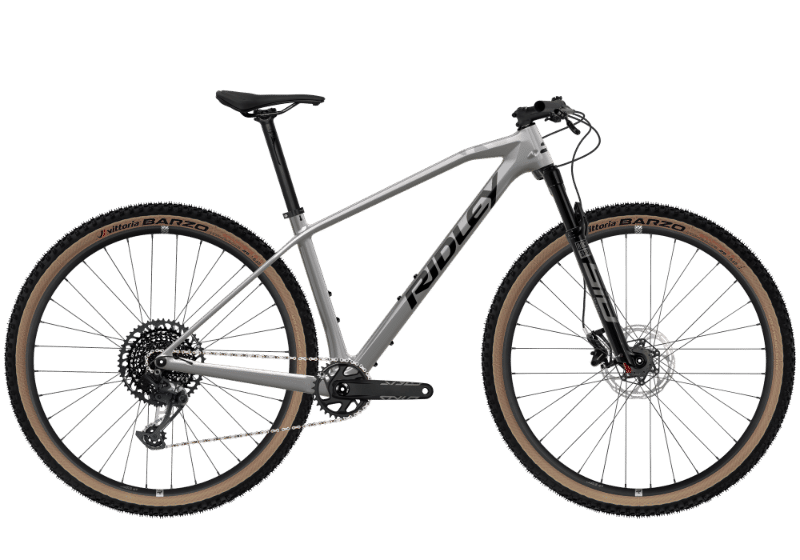

2026 Ridley Probe geometry
Full frame geometry for the 2026 Ridley Probe, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 606 | 430 | 75 | 68.5 | 100 | 604 | 430 | 770 | 63 | 430 | 1141 |
| S | 606 | 405 | 74 | 68.5 | 100 | 578 | 400 | 740 | 63 | 430 | 1089 |
| L | 620 | 455 | 76 | 68.5 | 115 | 633 | 470 | 810 | 63 | 430 | 1145 |
| XL | 634 | 480 | 77 | 68.5 | 130 | 662 | 520 | 860 | 63 | 430 | 1176 |
All measurements in millimetres unless marked (°) for angles.
