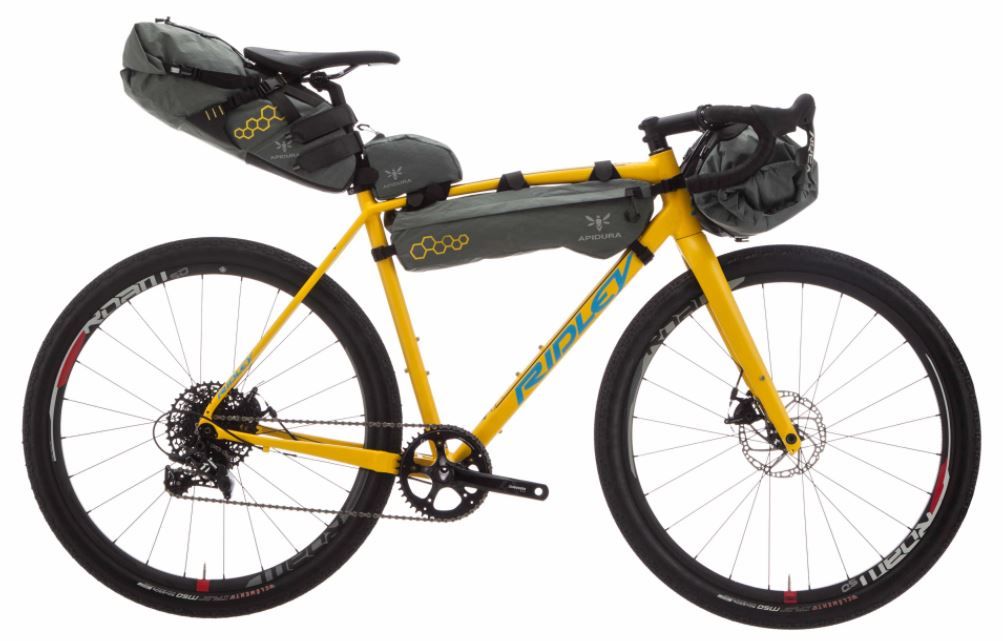

2018 Ridley X-Trail Adventure geometry
Full frame geometry for the 2018 Ridley X-Trail Adventure, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 528 | 374 | 75 | 70 | 100 | 515 | 450 | 741 | 74 | 430 | 1016 |
| XS | 542 | 377 | 74.7 | 70.5 | 113 | 525 | 480 | 763 | 74 | 430 | 1019 |
| S | 559 | 380 | 74 | 70.5 | 133 | 540 | 510 | 788 | 72 | 430 | 1029 |
| M | 584 | 386 | 73 | 71 | 158 | 565 | 540 | 806 | 72 | 430 | 1034 |
| L | 611 | 392 | 72.5 | 71 | 188 | 585 | 570 | 846 | 70 | 430 | 1056 |
| XL | 636 | 399 | 72.5 | 71.5 | 213 | 600 | 600 | 874 | 70 | 430 | 1066 |
All measurements in millimetres unless marked (°) for angles.
