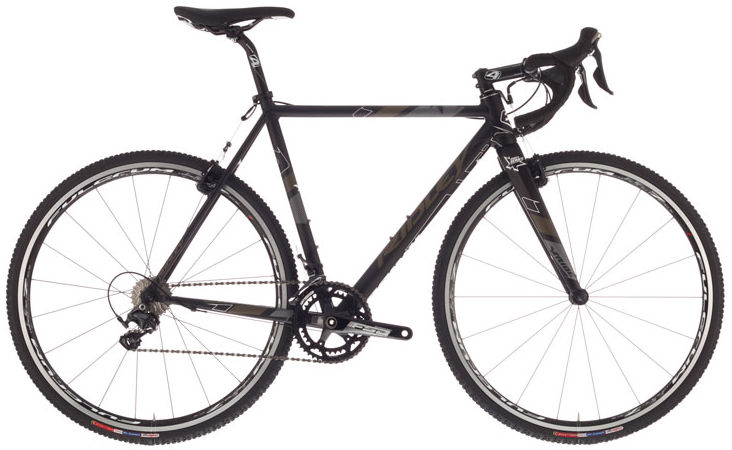

2013 Ridley X-Ride MK I geometry

Name: 2013 Ridley X-Ride MK I
Brand: Ridley

Full frame geometry for the 2013 Ridley X-Ride MK I, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Seat tube (mm)	Standover (mm)	BB drop (mm)	Chainstay (mm)	Wheelbase (mm)
41	494	378	75	71.5	89	502	450	710	53	425	1000
48	498	387	74.5	72	89	525	520	762	57	425	1000
50	513	381	74	72	104	530	540	779	57	425	1000
52	531	377	73.5	72	121	535	560	797	59	425	1000
54	551	382	73.5	72	140	545	580	816	61	425	1010
56	570	391	73.5	72	159	560	600	835	61	425	1025
58	588	395	73	72	178	575	620	853	61	425	1036

All measurements in millimetres unless marked (°) for angles.
