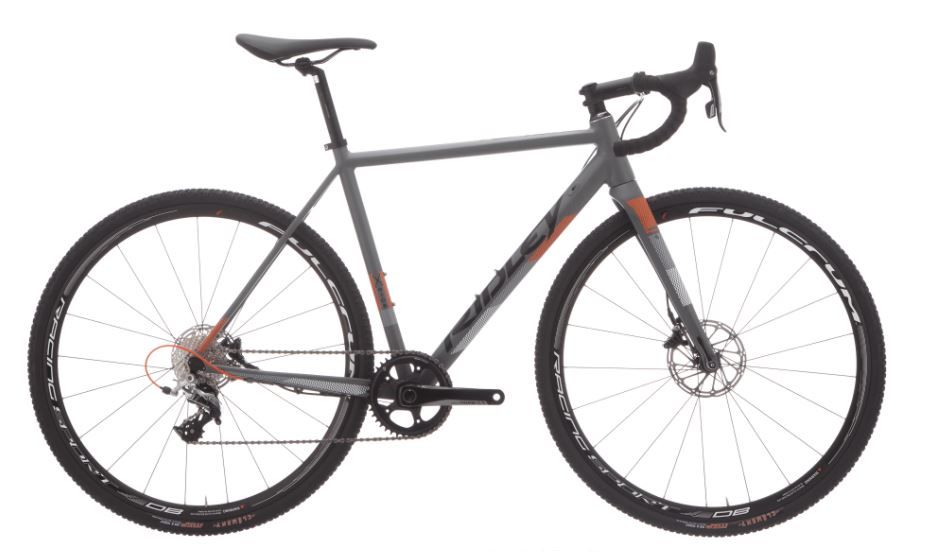

2018 Ridley X-Ride Disc MK II geometry
Full frame geometry for the 2018 Ridley X-Ride Disc MK II, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 496 | 382 | 75 | 71.5 | 89 | 515 | 450 | 735 | 53 | 425 | 1000 |
| XS | 512 | 383 | 74.5 | 72 | 100 | 525 | 475 | 751 | 57 | 425 | 1000 |
| S | 529 | 383 | 74 | 72 | 115 | 535 | 500 | 768 | 60 | 425 | 1004 |
| M | 550 | 382 | 73.5 | 72 | 135 | 545 | 525 | 789 | 62 | 425 | 1009 |
| L | 571 | 391 | 73.5 | 72 | 155 | 560 | 550 | 809 | 64 | 425 | 1023 |
| XL | 595 | 399 | 73.5 | 72 | 180 | 575 | 575 | 833 | 64 | 425 | 1039 |
All measurements in millimetres unless marked (°) for angles.
