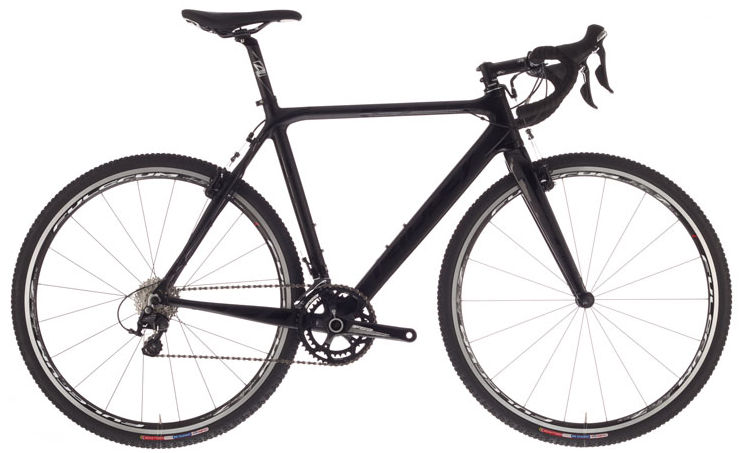

2013 Ridley X-Fire geometry

Name: 2013 Ridley X-Fire
Brand: Ridley

Full frame geometry for the 2013 Ridley X-Fire, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Seat tube (mm)	Standover (mm)	BB drop (mm)	Front centre (mm)	Chainstay (mm)	Wheelbase (mm)	Fork rake (mm)	Trail (mm)
41	494	378	74.5	72	90	502	450	800	53	568	425	993	47	64
48	523	385	74.5	72	115	525	520	825	57	583	425	1006	47	64
50	533	381	74	72	125	530	540	835	57	583	425	1006	47	64
52	554	377	73.5	72	145	535	560	850	59	585	425	1007	47	64
54	575	380	73.5	72	165	545	580	870	61	594	425	1016	47	64
56	594	389	73.5	72	185	560	600	890	61	609	425	1032	47	64
58	613	394	73	72	205	575	620	910	61	620	425	1043	47	64

All measurements in millimetres unless marked (°) for angles.
