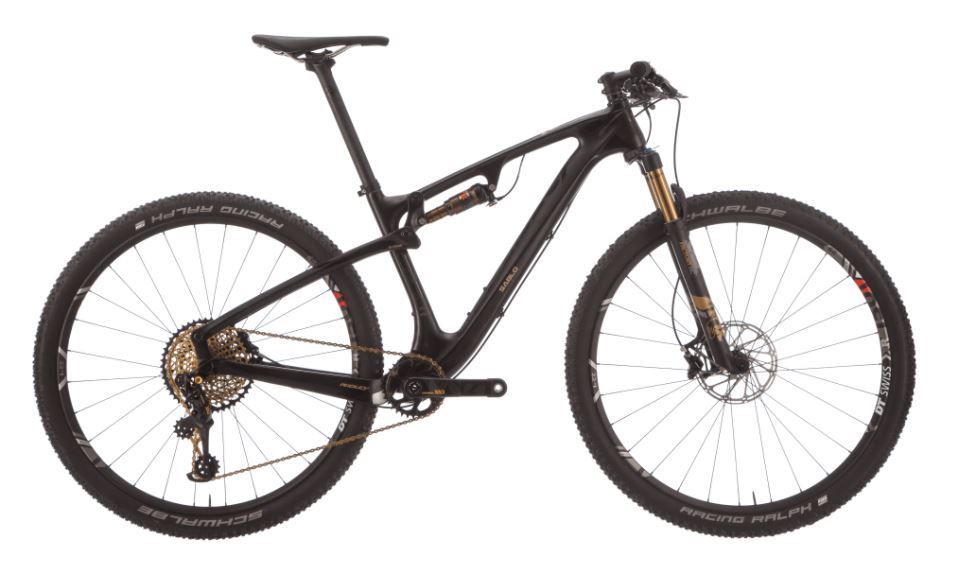

2018 Ridley Sablo geometry
Full frame geometry for the 2018 Ridley Sablo, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| M | 602 | 427 | 74 | 70 | 105 | 600 | 432 | 42 | 435 | 1113 |
| S | 602 | 397 | 74 | 70 | 105 | 570 | 385 | 42 | 435 | 1083 |
| L | 616 | 443 | 74 | 70 | 120 | 620 | 483 | 42 | 435 | 1133 |
| XL | 625 | 461 | 74 | 70 | 130 | 640 | 533 | 42 | 435 | 1155 |
All measurements in millimetres unless marked (°) for angles.
