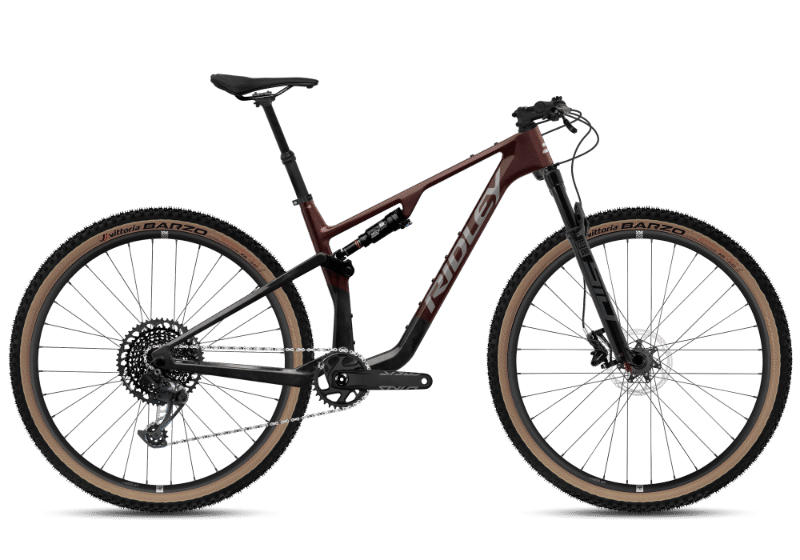

2026 Ridley Raft XC geometry
Full frame geometry for the 2026 Ridley Raft XC, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 589 | 420 | 76.3 | 67.5 | 95 | 564 | 420 | 435 | 1125 | 47 |
| M | 594 | 446 | 76 | 67.5 | 100 | 594 | 440 | 435 | 1153 | 47 |
| L | 608 | 469 | 76 | 67.5 | 115 | 620 | 480 | 435 | 1181 | 47 |
| XL | 626 | 484 | 76 | 67.5 | 135 | 640 | 520 | 435 | 1204 | 47 |
All measurements in millimetres unless marked (°) for angles.
