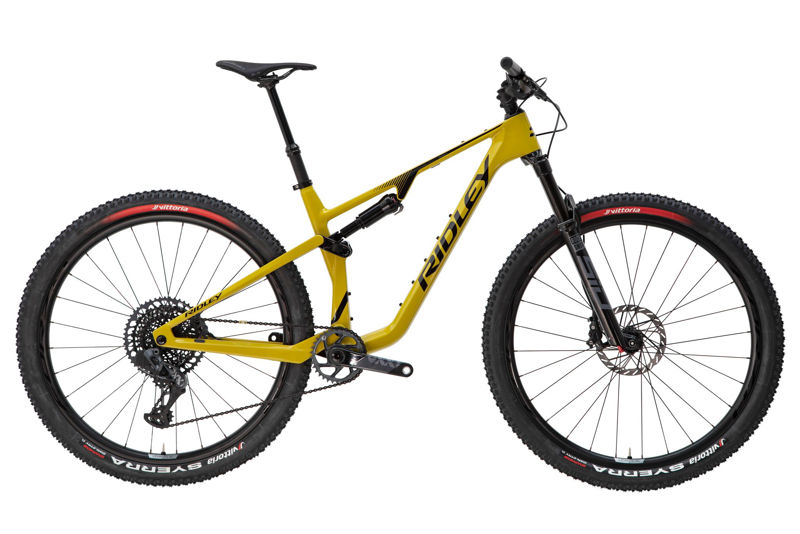

2023 Ridley Raft Trail geometry
Full frame geometry for the 2023 Ridley Raft Trail, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|
| S | 596 | 411 | 75.3 | 66.6 | 95 | 566 | 40 | 435 | 1133 |
| M | 601 | 436 | 75.1 | 66.6 | 100 | 597 | 40 | 435 | 1160 |
| L | 608 | 459 | 75.1 | 66.6 | 115 | 623 | 40 | 435 | 1189 |
| XL | 633 | 474 | 75.1 | 66.6 | 135 | 643 | 40 | 435 | 1212 |
All measurements in millimetres unless marked (°) for angles.
