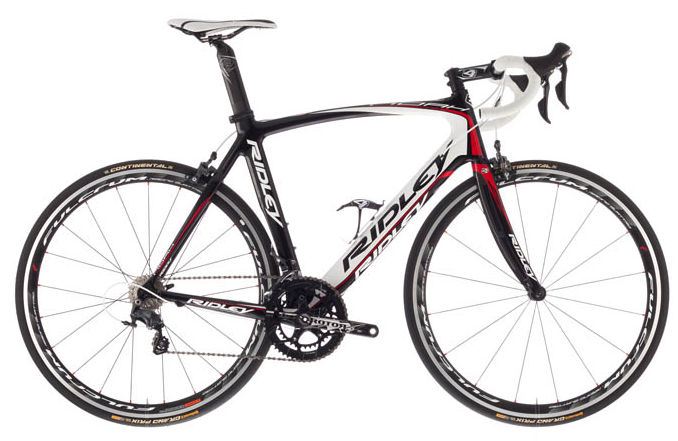

2013 Ridley Noah RS geometry
Full frame geometry for the 2013 Ridley Noah RS, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 530 | 375 | 74 | 72 | 130 | 525 | 670 | 740 | 68 | 569 | 405 | 974 | 44 | 62 |
| S | 545 | 385 | 73.5 | 73 | 145 | 545 | 510 | 750 | 66 | 575 | 405 | 977 | 44 | 56 |
| M | 575 | 390 | 73 | 73.5 | 175 | 565 | 540 | 780 | 66 | 585 | 405 | 990 | 44 | 53 |
| L | 602 | 400 | 72.5 | 73.5 | 205 | 585 | 570 | 810 | 63 | 604 | 408 | 1003 | 44 | 53 |
| XL | 625 | 405 | 72.5 | 74 | 230 | 600 | 800 | 840 | 63 | 610 | 408 | 1012 | 44 | 50 |
All measurements in millimetres unless marked (°) for angles.
