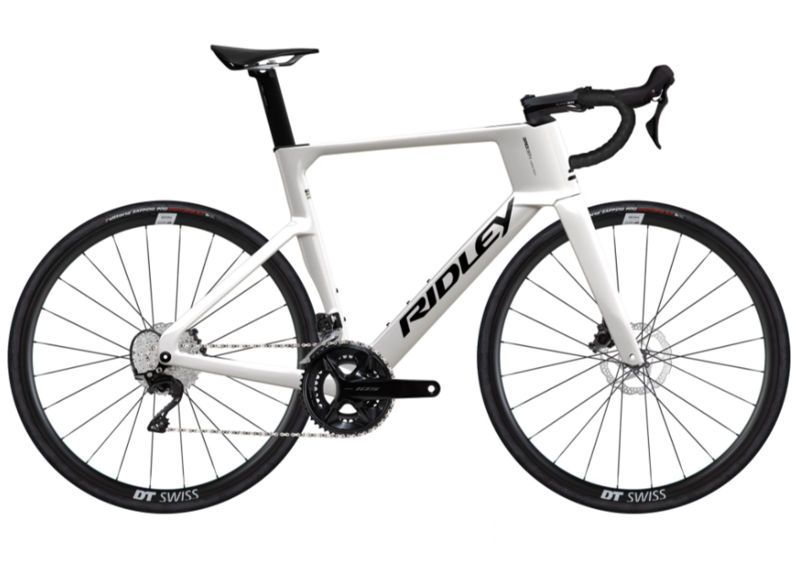

2025 Ridley Noah 3.0 geometry
Full frame geometry for the 2025 Ridley Noah 3.0, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| XS | 532 | 392 | 76 | 72 | 130 | 525 | 485 | 72 | 407 | 995 |
| S | 549 | 403 | 75.5 | 73 | 145 | 545 | 510 | 70 | 407 | 997 |
| M | 570 | 412 | 75 | 73.5 | 165 | 565 | 540 | 70 | 407 | 1008 |
| L | 594 | 420 | 74.5 | 73.5 | 190 | 585 | 560 | 70 | 407 | 1023 |
All measurements in millimetres unless marked (°) for angles.
