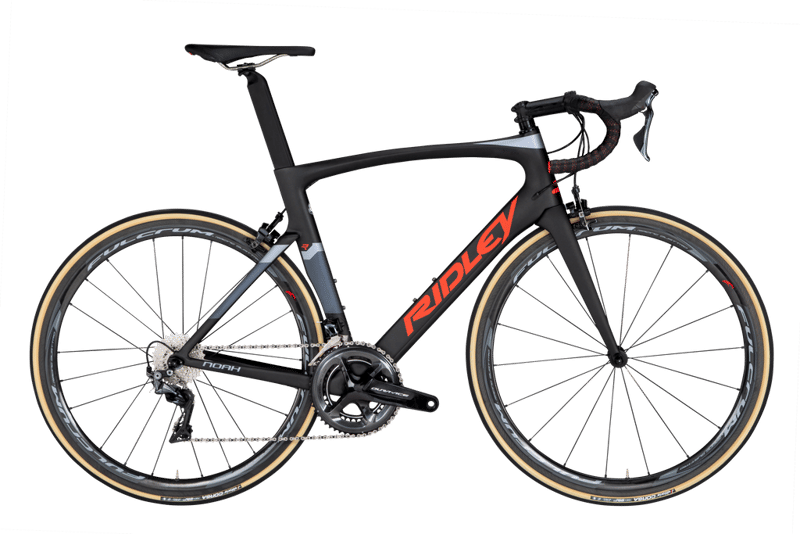

2022 Ridley Noah 24T geometry
Full frame geometry for the 2022 Ridley Noah 24T, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 507 | 379 | 75 | 72 | 110 | 516 | 460 | 68 | 405 | 970 |
| XS | 527 | 374 | 74 | 72 | 130 | 525 | 475 | 68 | 405 | 970 |
| S | 542 | 384 | 73.5 | 73 | 145 | 545 | 490 | 66 | 405 | 977 |
| M | 573 | 390 | 73 | 73.5 | 175 | 565 | 520 | 66 | 405 | 987 |
| L | 599 | 396 | 72.5 | 73.5 | 205 | 585 | 550 | 63 | 408 | 1005 |
All measurements in millimetres unless marked (°) for angles.
