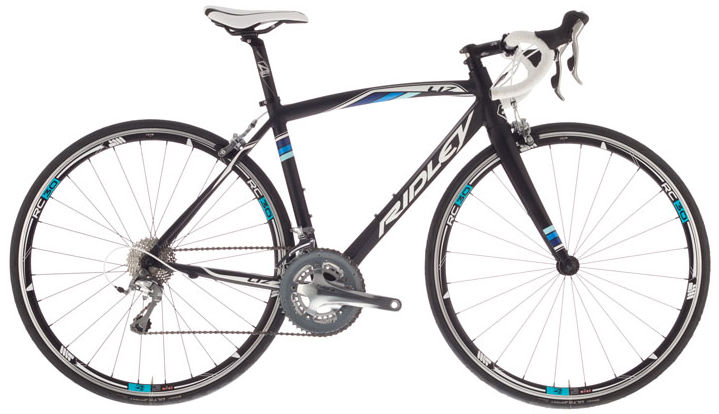

2013 Ridley Liz A MK I geometry
Full frame geometry for the 2013 Ridley Liz A MK I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 485 | 365 | 75.5 | 70.5 | 130 | 500 | 450 | 712 | 67 | 558 | 405 | 975 | 45 | 71 |
| XS | 492 | 370 | 75 | 70 | 135 | 505 | 470 | 725 | 67 | 570 | 405 | 978 | 45 | 74 |
| S | 500 | 375 | 75 | 71 | 140 | 515 | 490 | 740 | 67 | 569 | 405 | 982 | 45 | 67 |
| M | 522 | 380 | 74.5 | 72 | 155 | 530 | 520 | 762 | 67 | 573 | 405 | 975 | 45 | 61 |
All measurements in millimetres unless marked (°) for angles.
