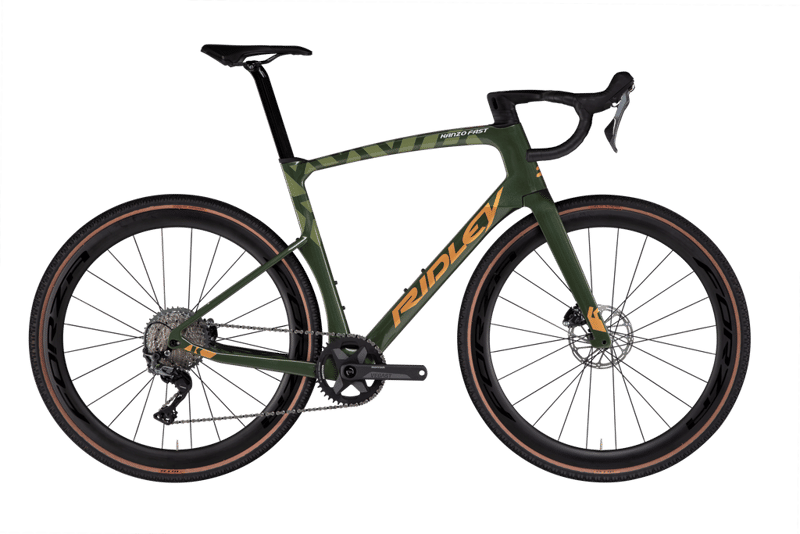

2022 Ridley Kanzo Fast geometry
Full frame geometry for the 2022 Ridley Kanzo Fast, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 537 | 373 | 74.5 | 71 | 115 | 522 | 470 | 789 | 74 | 425 | 1001 |
| S | 563 | 380 | 73.5 | 71 | 144 | 547 | 495 | 816 | 72 | 425 | 1017 |
| M | 587 | 385 | 73 | 71.5 | 168 | 565 | 520 | 841 | 72 | 425 | 1026 |
| L | 613 | 393 | 72.5 | 71.5 | 197 | 587 | 545 | 868 | 70 | 425 | 1044 |
| XL | 638 | 400 | 73 | 72 | 221 | 601 | 570 | 893 | 70 | 425 | 1053 |
All measurements in millimetres unless marked (°) for angles.
