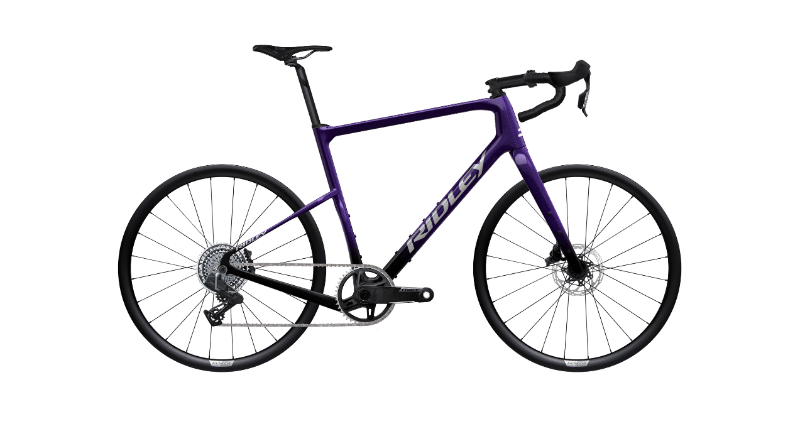

2025 Ridley Kanzo Adventure geometry
Full frame geometry for the 2025 Ridley Kanzo Adventure, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 546 | 379 | 74.5 | 70.8 | 115 | 530 | 470 | 791 | 75 | 435 | 1024 |
| S | 569 | 387 | 74 | 70.8 | 140 | 550 | 495 | 814 | 75 | 435 | 1041 |
| M | 591 | 401 | 74 | 70.5 | 165 | 570 | 520 | 836 | 75 | 435 | 1065 |
| L | 617 | 415 | 74 | 70.5 | 192 | 592 | 545 | 862 | 75 | 435 | 1088 |
| XL | 639 | 426 | 73.5 | 70.5 | 215 | 615 | 570 | 884 | 75 | 435 | 1107 |
All measurements in millimetres unless marked (°) for angles.
