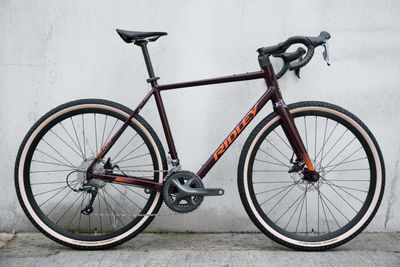

2025 Ridley Kalazy geometry
Full frame geometry for the 2025 Ridley Kalazy, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 560 | 370 | 74.5 | 70.5 | 120 | 525 | 480 | 781 | 73 | 440 | 1029 |
| S | 578 | 380 | 74 | 70.5 | 140 | 545 | 525 | 805 | 73 | 440 | 1045 |
| M | 604 | 390 | 74 | 71 | 165 | 565 | 555 | 827 | 73 | 440 | 1061 |
| L | 627 | 405 | 74 | 71 | 190 | 585 | 585 | 853 | 73 | 440 | 1082 |
| XL | 653 | 412 | 73.5 | 71.5 | 215 | 600 | 615 | 875 | 73 | 440 | 1093 |
All measurements in millimetres unless marked (°) for angles.
