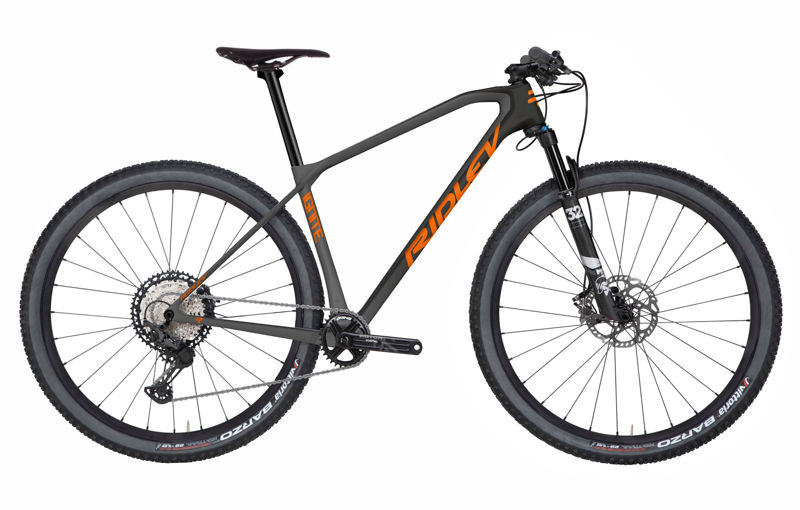

2023 Ridley Ignite geometry
Full frame geometry for the 2023 Ridley Ignite, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|
| S | 609 | 400 | 73.5 | 70 | 95 | 580 | 58 | 430 | 1080 |
| M | 614 | 418 | 73.5 | 70 | 100 | 600 | 58 | 430 | 1100 |
| L | 623 | 440 | 73.5 | 70 | 110 | 625 | 58 | 430 | 1126 |
| XL | 642 | 460 | 73.5 | 70 | 130 | 650 | 58 | 430 | 1152 |
All measurements in millimetres unless marked (°) for angles.
