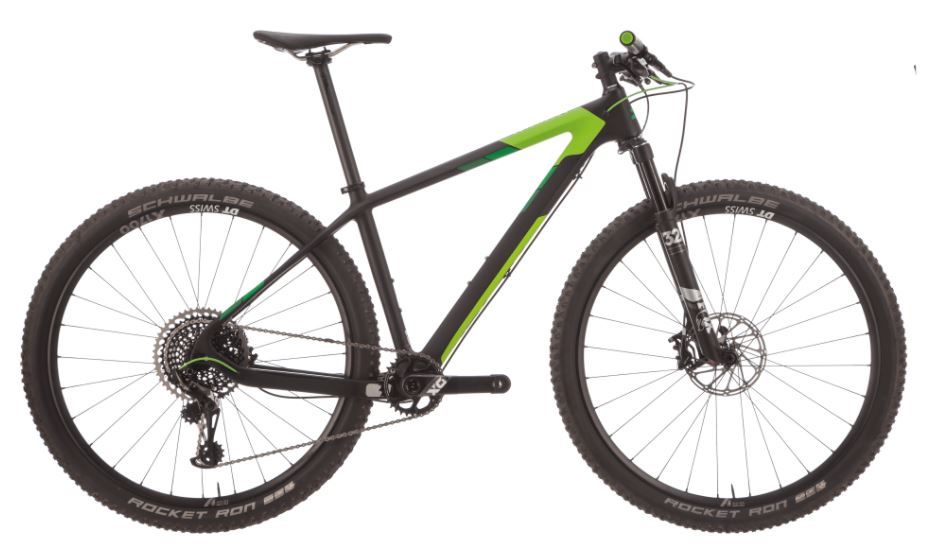

2018 Ridley Ignite Carbon geometry
Full frame geometry for the 2018 Ridley Ignite Carbon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| M | 611 | 419 | 73.5 | 71 | 100 | 600 | 435 | 62 | 445 | 1097 |
| L | 625 | 429 | 73 | 71 | 115 | 620 | 485 | 62 | 445 | 1112 |
| XL | 642 | 438 | 73 | 71 | 130 | 640 | 535 | 63 | 445 | 1121 |
All measurements in millimetres unless marked (°) for angles.
