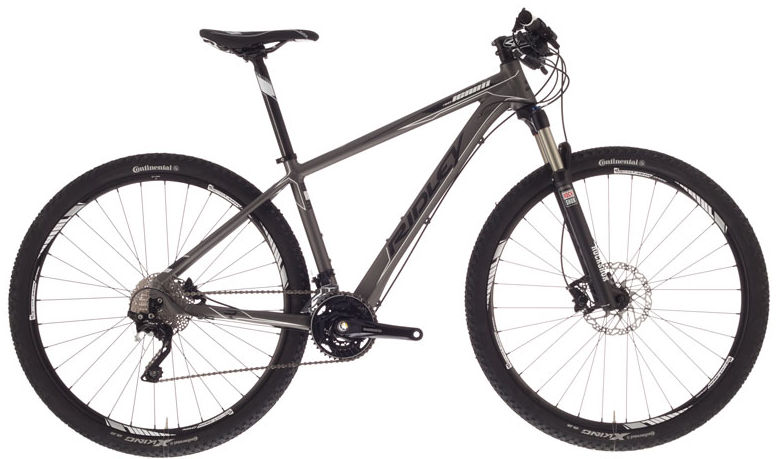

2014 Ridley Ignite A geometry
Full frame geometry for the 2014 Ridley Ignite A, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S (27.5) | 600 | 392 | 73.5 | 70.5 | 110 | 570 | 380 | 50 | 636 | 430 | 1061 | 44 |
| M (27.5) | 603 | 412 | 73.5 | 71 | 110 | 590 | 430 | 50 | 650 | 430 | 1075 | 44 |
| L (27.5) | 617 | 421 | 73 | 71 | 125 | 610 | 480 | 50 | 665 | 430 | 1090 | 44 |
| M (29) | 626 | 408 | 73 | 71 | 110 | 600 | 430 | 62 | 652 | 445 | 1090 | 45 |
| L (29) | 631 | 427 | 73 | 71 | 115 | 620 | 480 | 62 | 673 | 445 | 1110 | 45 |
| XL (27.5) | 631 | 436 | 72.5 | 71 | 140 | 635 | 530 | 50 | 685 | 430 | 1110 | 44 |
| XL (29) | 645 | 430 | 72 | 71 | 130 | 640 | 530 | 62 | 681 | 445 | 1119 | 45 |
All measurements in millimetres unless marked (°) for angles.
