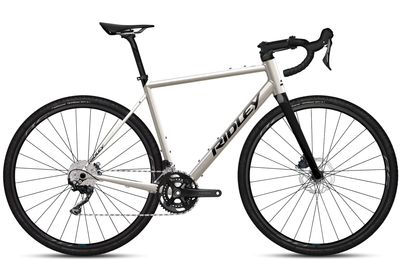

2024 Ridley Grifn A geometry
Full frame geometry for the 2024 Ridley Grifn A, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 515 | 372 | 74.5 | 71.5 | 90 | 515 | 450 | 760 | 420 | 982 | 75 |
| XS | 530 | 379 | 74.5 | 71.5 | 105 | 525 | 480 | 775 | 420 | 993 | 75 |
| S | 553 | 386 | 74 | 72 | 130 | 545 | 505 | 800 | 420 | 1005 | 73 |
| M | 577 | 394 | 74 | 72 | 155 | 565 | 530 | 824 | 420 | 1021 | 73 |
| L | 603 | 406 | 74 | 72 | 182 | 585 | 555 | 852 | 420 | 1043 | 71 |
| XL | 622 | 414 | 73.5 | 72 | 205 | 605 | 580 | 871 | 420 | 1057 | 71 |
All measurements in millimetres unless marked (°) for angles.
