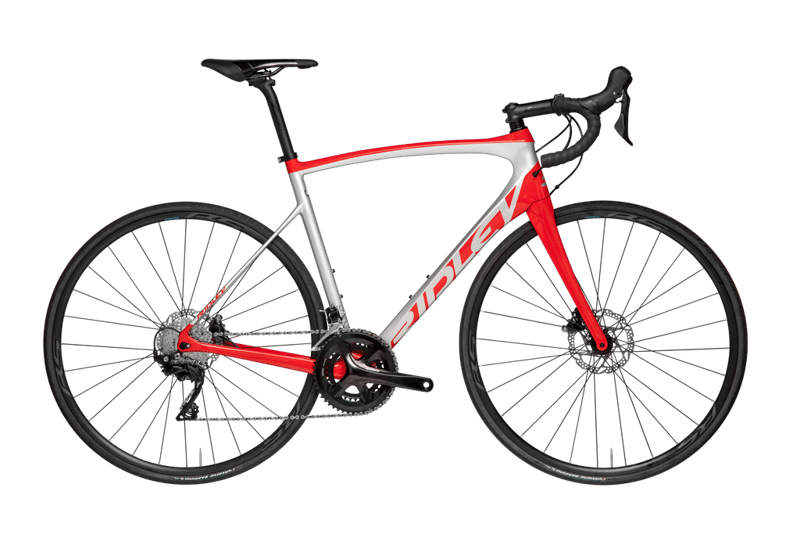

2022 Ridley Fenix SL Disc geometry
Full frame geometry for the 2022 Ridley Fenix SL Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 507 | 379 | 75 | 71.8 | 107 | 515 | 450 | 68 | 410 | 975 |
| XS | 527 | 374 | 74 | 72 | 127 | 525 | 480 | 68 | 410 | 975 |
| S | 542 | 384 | 73.5 | 73 | 142 | 545 | 510 | 66 | 410 | 982 |
| M | 573 | 392 | 73 | 73.5 | 172 | 565 | 540 | 66 | 410 | 992 |
| L | 599 | 396 | 72.5 | 73.5 | 202 | 585 | 570 | 63 | 413 | 1010 |
| XL | 624 | 403 | 72.5 | 74 | 227 | 600 | 600 | 63 | 413 | 1019 |
All measurements in millimetres unless marked (°) for angles.
