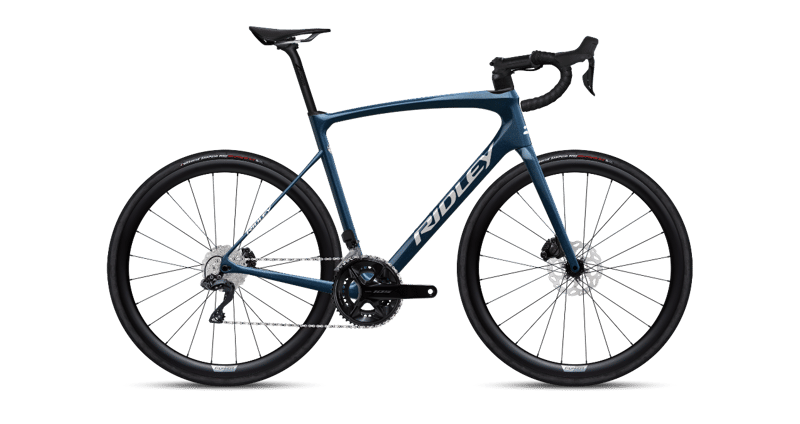

2024 Ridley Fenix Disc geometry
Full frame geometry for the 2024 Ridley Fenix Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 517 | 377 | 74 | 72 | 117 | 525 | 464 | 768 | 68 | 410 | 975 |
| S | 541 | 385 | 73.5 | 73 | 140 | 545 | 492 | 795 | 66 | 410 | 982 |
| M | 565 | 392 | 73 | 73.5 | 164 | 565 | 522 | 823 | 66 | 410 | 992 |
| L | 591 | 401 | 72.5 | 73.5 | 194 | 587 | 549 | 853 | 63 | 413 | 1012 |
| XL | 615 | 409 | 72.5 | 74 | 218 | 603 | 579 | 880 | 63 | 413 | 1022 |
All measurements in millimetres unless marked (°) for angles.
