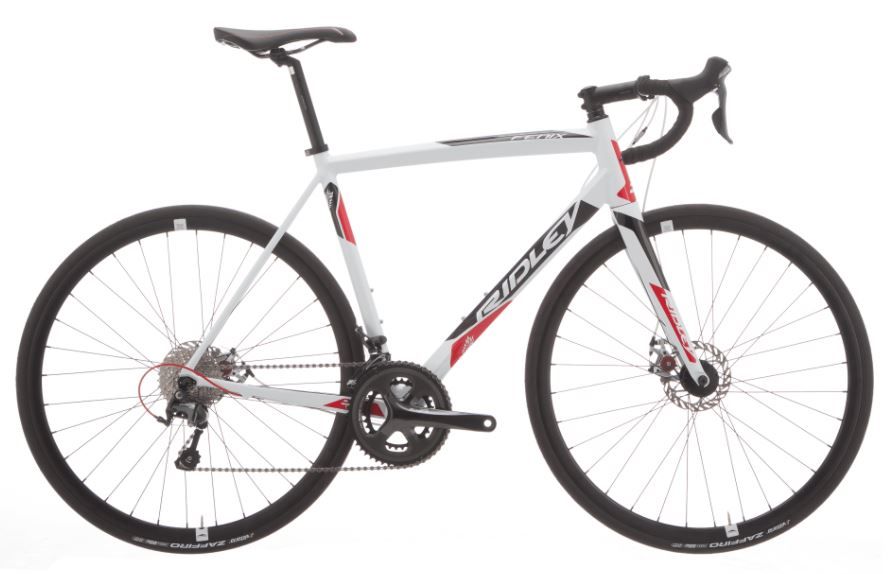

2018 Ridley Fenix A Disc geometry
Full frame geometry for the 2018 Ridley Fenix A Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS/48 | 505 | 380 | 75 | 71.8 | 107 | 515 | 450 | 737 | 68 | 575 | 410 | 975 |
| XS/51 | 524 | 375 | 74 | 72 | 127 | 525 | 480 | 761 | 68 | 575 | 410 | 975 |
| S/54 | 540 | 385 | 73.5 | 73 | 142 | 545 | 510 | 785 | 66 | 581 | 410 | 982 |
| M/57 | 570 | 391 | 73 | 73.5 | 172 | 565 | 540 | 816 | 66 | 591 | 410 | 992 |
| L/60 | 596 | 397 | 72.5 | 73.5 | 202 | 585 | 570 | 845 | 63 | 605 | 413 | 1010 |
| XL/63 | 637 | 399 | 72.5 | 74 | 227 | 600 | 600 | 868 | 70 | 637 | 425 | 1052 |
All measurements in millimetres unless marked (°) for angles.
