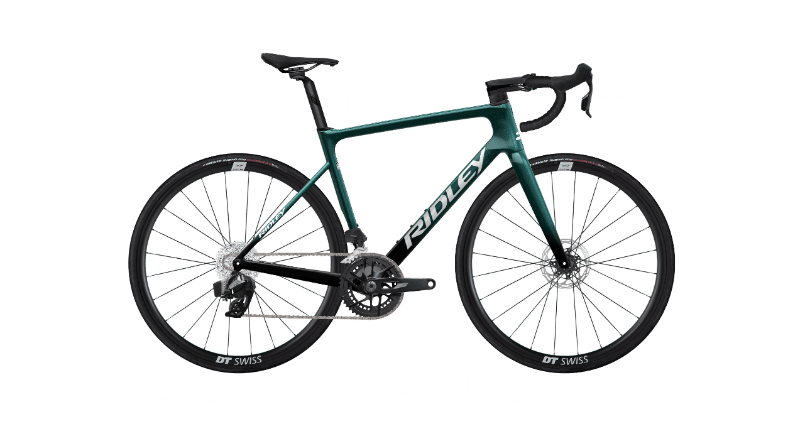

2024 Ridley Falcn geometry
Full frame geometry for the 2024 Ridley Falcn, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 492 | 374 | 74.5 | 71.5 | 95 | 510 | 428 | 75 | 407 | 967 |
| XS | 513 | 378 | 74 | 72 | 115 | 525 | 455 | 75 | 407 | 974 |
| S | 530 | 388 | 73.5 | 73 | 130 | 545 | 480 | 70 | 407 | 977 |
| M | 551 | 397 | 73 | 73.5 | 150 | 565 | 499 | 70 | 407 | 987 |
| L | 573 | 404 | 72.5 | 73.5 | 175 | 585 | 530 | 68 | 407 | 1002 |
| XL | 599 | 411 | 72.5 | 74 | 200 | 600 | 555 | 68 | 407 | 1012 |
All measurements in millimetres unless marked (°) for angles.
