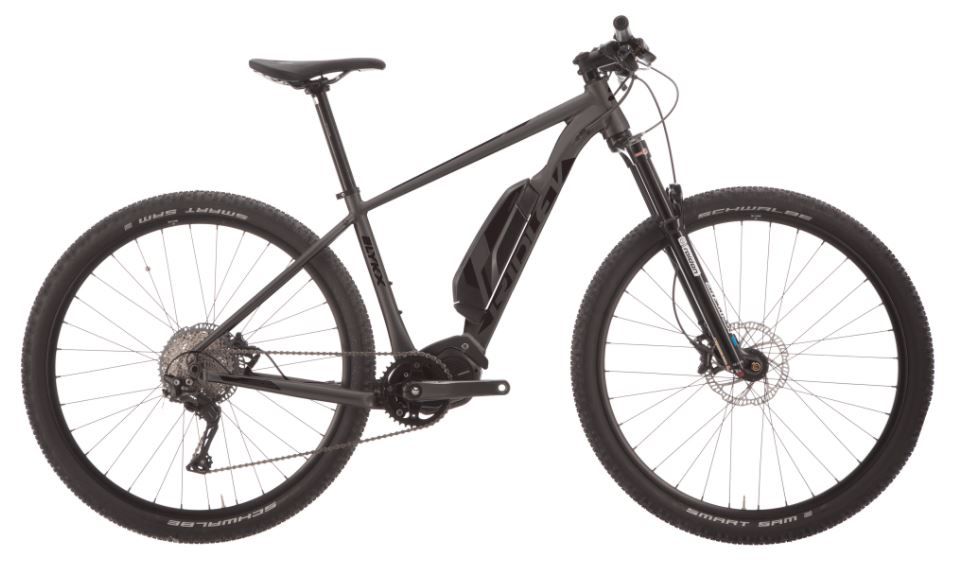

2018 Ridley Elykx A geometry
Full frame geometry for the 2018 Ridley Elykx A, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 628 | 383 | 73 | 68.5 | 105 | 575 | 395 | 60 | 458 | 1116 |
| M | 637 | 390 | 73 | 68.5 | 115 | 585 | 440 | 60 | 458 | 1126 |
| L | 646 | 408 | 73 | 68.5 | 125 | 605 | 480 | 60 | 458 | 1146 |
| XL | 665 | 427 | 73 | 68.5 | 145 | 630 | 530 | 60 | 458 | 1147 |
All measurements in millimetres unless marked (°) for angles.
