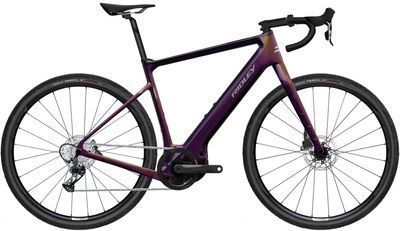

2025 Ridley E-Kanzo Adventure geometry
Full frame geometry for the 2025 Ridley E-Kanzo Adventure, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 590 | 380 | 74 | 70.5 | 130 | 550 | 460 | 75 | 435 | 1045 |
| M | 610 | 405 | 74 | 70.5 | 150 | 580 | 500 | 75 | 435 | 1075 |
| L | 630 | 430 | 74 | 70.5 | 170 | 610 | 540 | 75 | 435 | 1105 |
All measurements in millimetres unless marked (°) for angles.
