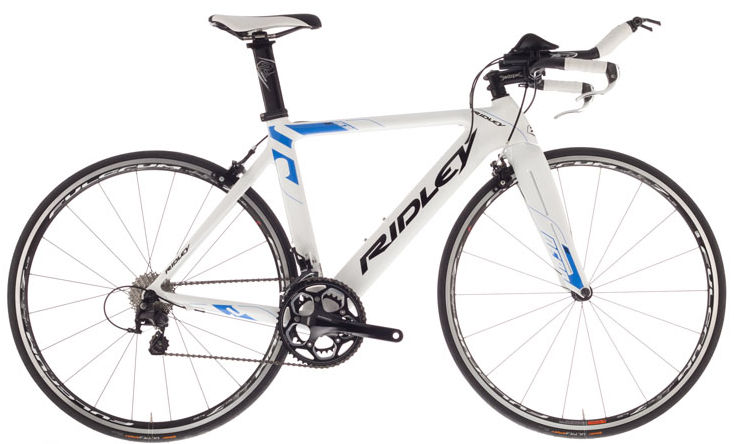

2013 Ridley Dean RS geometry
Full frame geometry for the 2013 Ridley Dean RS, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 480 | 404 | 78 | 72.5 | 85 | 500 | 460 | 745 | 60 | 390 | 967 |
| S | 512 | 418 | 78 | 73 | 110 | 522 | 495 | 767 | 65 | 390 | 985 |
| M | 530 | 430 | 78 | 73 | 130 | 545 | 556 | 800 | 65 | 390 | 1002 |
| L | 550 | 440 | 78 | 73 | 150 | 560 | 575 | 815 | 65 | 390 | 1020 |
| XL | 577 | 450 | 78 | 73 | 180 | 575 | 605 | 842 | 65 | 390 | 1036 |
All measurements in millimetres unless marked (°) for angles.
