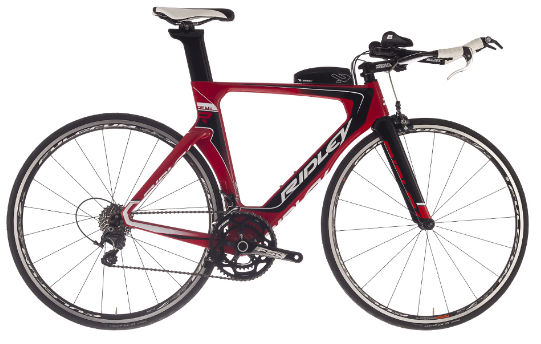

2016 Ridley Dean MKII geometry
Full frame geometry for the 2016 Ridley Dean MKII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 485 | 385 | 77 | 71 | 84 | 497 | 75 | 579 | 399 | 966 | 45 | 69 |
| XS | 506 | 395 | 77 | 72.5 | 101 | 512 | 75 | 583 | 399 | 970 | 45 | 60 |
| S | 522 | 408 | 77 | 73 | 116 | 529 | 75 | 596 | 399 | 984 | 45 | 57 |
| M | 540 | 425 | 77 | 73 | 135 | 550 | 75 | 619 | 399 | 1006 | 45 | 57 |
| L | 560 | 439 | 77 | 73 | 156 | 568 | 75 | 639 | 399 | 1026 | 45 | 57 |
All measurements in millimetres unless marked (°) for angles.
