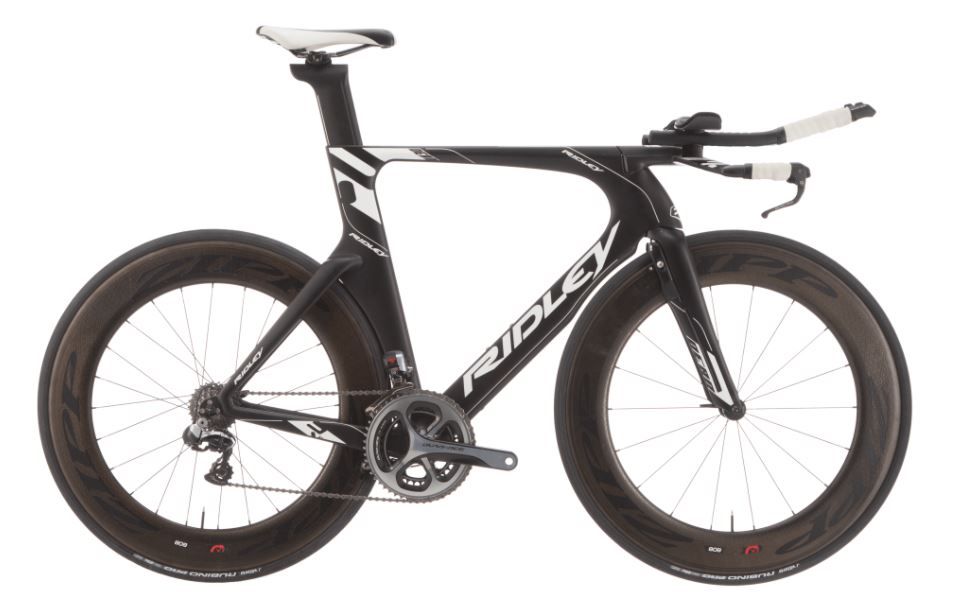

2018 Ridley Dean Fast MKII geometry
Full frame geometry for the 2018 Ridley Dean Fast MKII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 488 | 380 | 77 | 71 | 86 | 493 | 547 | 70 | 395 | 959 |
| XS | 503 | 395 | 77 | 72.5 | 97 | 511 | 563 | 70 | 395 | 966 |
| S | 518 | 410 | 77 | 73 | 111 | 530 | 581 | 70 | 395 | 982 |
| M | 533 | 425 | 77 | 73 | 127 | 548 | 597 | 70 | 395 | 1001 |
| L | 550 | 442 | 77 | 73 | 144 | 569 | 615 | 70 | 395 | 1024 |
All measurements in millimetres unless marked (°) for angles.
