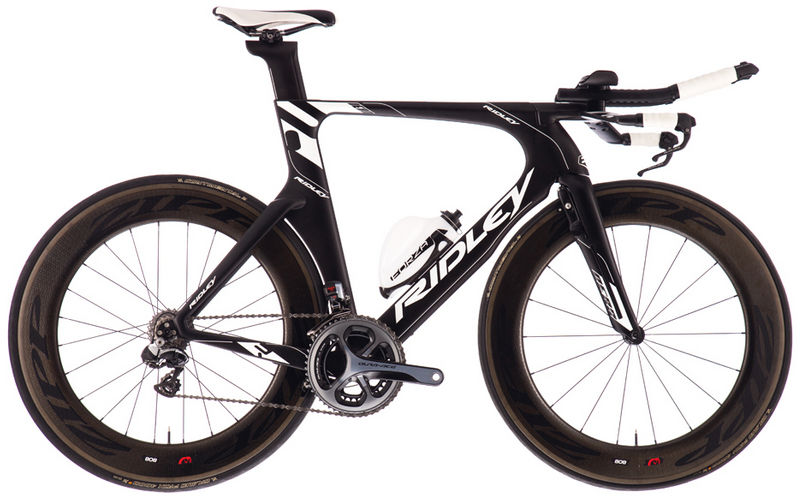

2014 Ridley Dean FAST MK I geometry
Full frame geometry for the 2014 Ridley Dean FAST MK I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| XS | 503 | 395 | 77 | 72.5 | 97 | 511 | 563 | 70 | 395 | 966 |
| S | 518 | 410 | 77 | 73 | 111 | 530 | 582 | 70 | 395 | 982 |
| M | 533 | 425 | 77 | 73 | 127 | 548 | 597 | 70 | 395 | 1001 |
All measurements in millimetres unless marked (°) for angles.
