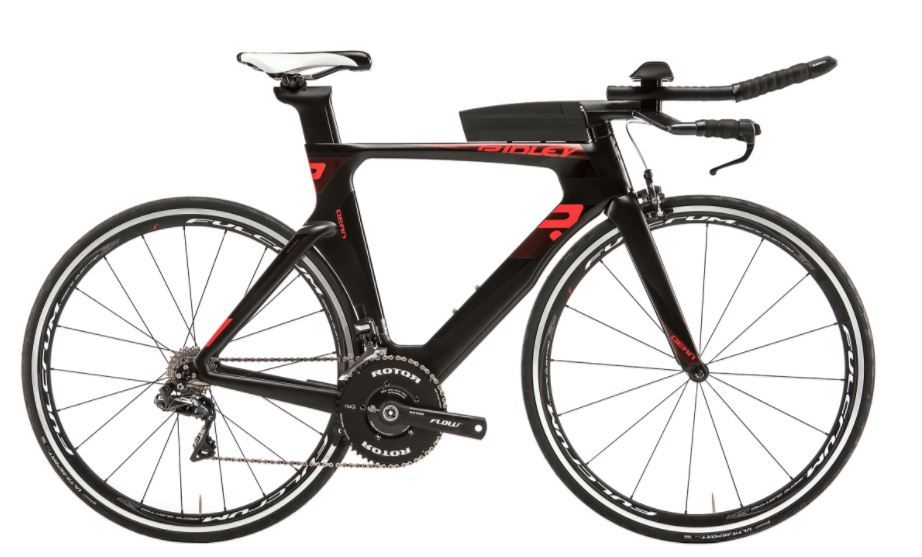

2018 Ridley Dean Di2 geometry
Full frame geometry for the 2018 Ridley Dean Di2, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 485 | 385 | 77 | 71 | 84 | 497 | 486 | 742 | 75 | 395 | 962 |
| XS | 506 | 395 | 77 | 72 | 101 | 512 | 510 | 763 | 75 | 395 | 966 |
| S | 522 | 408 | 77 | 73 | 116 | 527 | 527 | 779 | 75 | 395 | 977 |
| M | 540 | 425 | 77 | 73 | 135 | 548 | 554 | 797 | 75 | 395 | 1002 |
| L | 560 | 439 | 76 | 73 | 156 | 568 | 575 | 817 | 75 | 395 | 1022 |
All measurements in millimetres unless marked (°) for angles.
