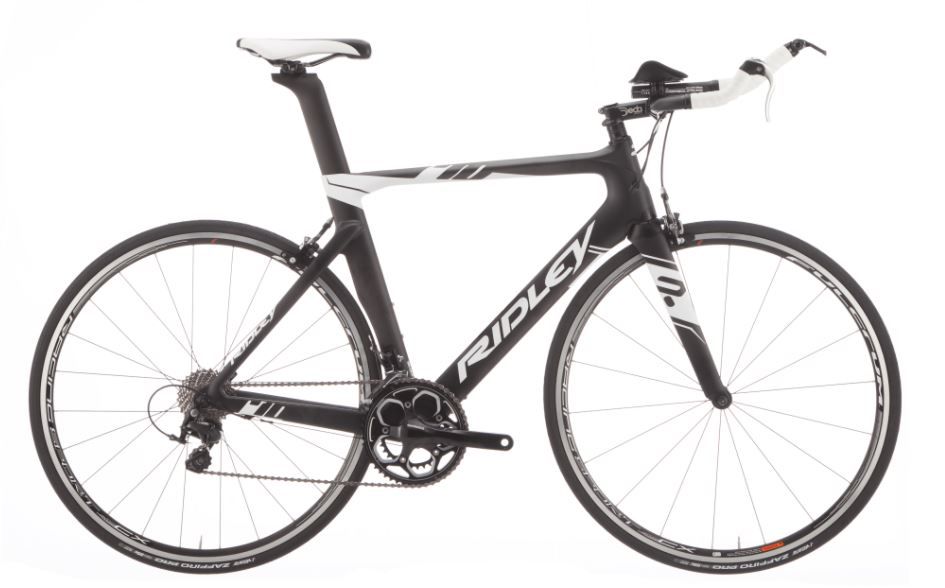

2018 Ridley Chronus geometry
Full frame geometry for the 2018 Ridley Chronus, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 515 | 377 | 74 | 72 | 120 | 525 | 483 | 483 | 68 | 405 | 969 |
| S | 531 | 388 | 73.5 | 73 | 135 | 545 | 494 | 495 | 66 | 405 | 977 |
| M | 557 | 395 | 73 | 73.5 | 160 | 565 | 515 | 518 | 66 | 405 | 987 |
| L | 578 | 403 | 72.5 | 73.5 | 185 | 585 | 537 | 541 | 63 | 408 | 1006 |
All measurements in millimetres unless marked (°) for angles.
