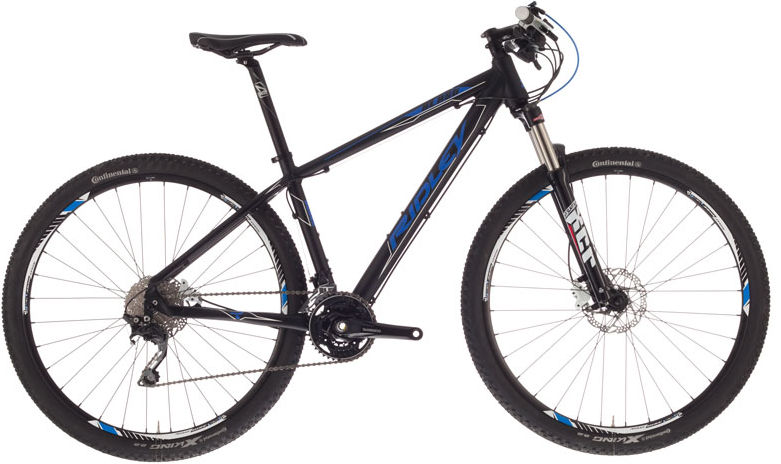

2014 Ridley Blast MK I geometry
Full frame geometry for the 2014 Ridley Blast MK I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S (26) | 571 | 375 | 73 | 70 | 110 | 550 | 380 | 35 | 614 | 425 | 1036 | 39 |
| M (26) | 580 | 393 | 73 | 70 | 120 | 570 | 430 | 35 | 634 | 425 | 1057 | 39 |
| M (29) | 622 | 395 | 73 | 70 | 110 | 585 | 430 | 62 | 649 | 445 | 1086 | 45 |
| L (29) | 627 | 413 | 73 | 70 | 115 | 605 | 480 | 62 | 669 | 445 | 1107 | 45 |
| XL (29) | 645 | 425 | 72 | 71 | 130 | 635 | 530 | 62 | 676 | 445 | 1114 | 45 |
All measurements in millimetres unless marked (°) for angles.
