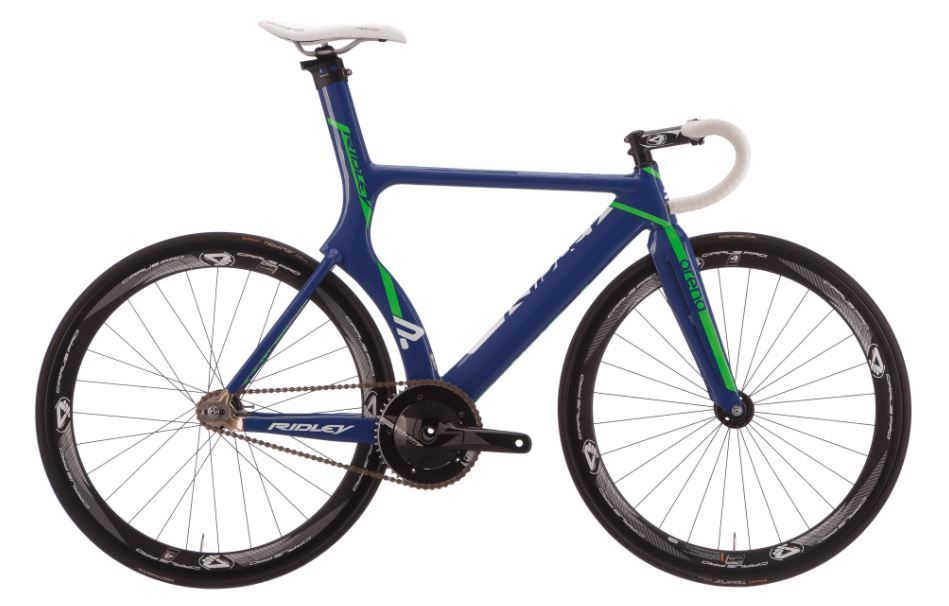

2018 Ridley Arena Carbon Vision Track geometry
Full frame geometry for the 2018 Ridley Arena Carbon Vision Track, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 527 | 374 | 75 | 74 | 100 | 530 | 740 | 45 | 380 | 935 |
| M | 542 | 384 | 74.5 | 74 | 120 | 550 | 760 | 45 | 380 | 950 |
| L | 573 | 380 | 74.5 | 74 | 120 | 570 | 780 | 45 | 380 | 970 |
| XL | 599 | 396 | 75 | 74 | 140 | 590 | 800 | 45 | 380 | 996 |
All measurements in millimetres unless marked (°) for angles.
