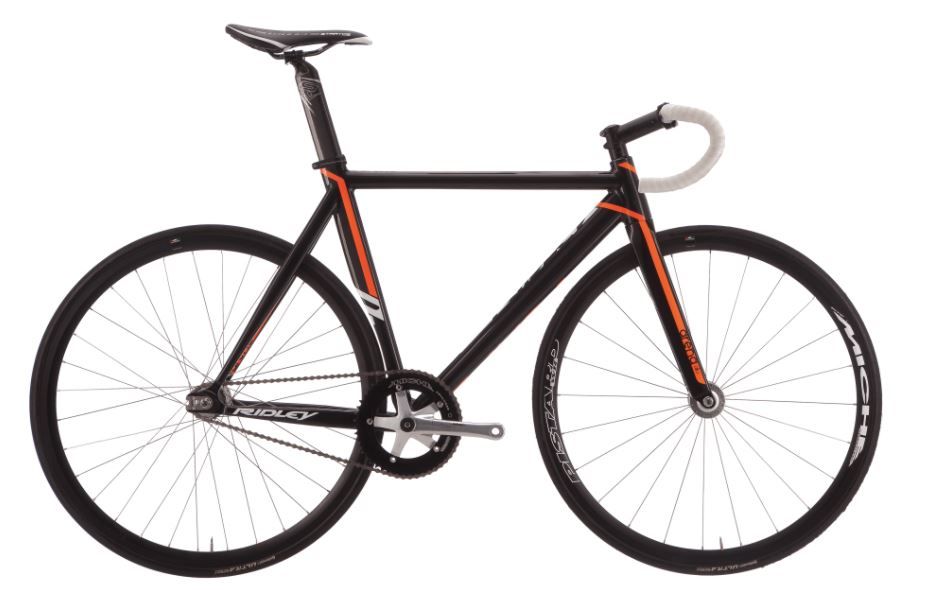

2018 Ridley Arena Alloy Vision Track geometry
Full frame geometry for the 2018 Ridley Arena Alloy Vision Track, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 482 | 392 | 75.5 | 73.5 | 100 | 515 | 490 | 753 | 45 | 380 | 930 |
| S | 484 | 402 | 75 | 74 | 100 | 530 | 510 | 763 | 45 | 380 | 937 |
| L | 503 | 432 | 74.5 | 74 | 120 | 570 | 550 | 791 | 45 | 380 | 972 |
| M | 503 | 412 | 74.5 | 74 | 120 | 550 | 530 | 781 | 45 | 380 | 952 |
| XL | 522 | 452 | 75 | 74 | 140 | 590 | 570 | 811 | 45 | 380 | 997 |
All measurements in millimetres unless marked (°) for angles.
