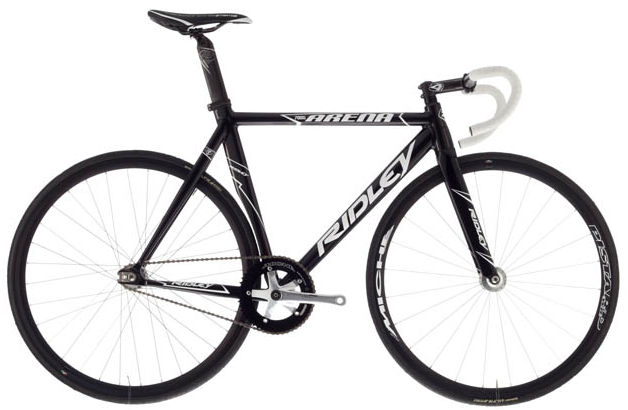

2013 Ridley Arena 7005 geometry
Full frame geometry for the 2013 Ridley Arena 7005, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 482 | 390 | 75.5 | 73.5 | 100 | 515 | 720 | 775 | 45 | 549 | 380 | 928 | 30 | 68 |
| S | 484 | 400 | 75 | 74 | 100 | 530 | 740 | 775 | 45 | 556 | 380 | 934 | 30 | 65 |
| L | 503 | 430 | 74.5 | 74 | 120 | 570 | 780 | 785 | 45 | 591 | 380 | 970 | 30 | 65 |
| M | 503 | 411 | 74.5 | 74 | 120 | 550 | 760 | 785 | 45 | 572 | 380 | 950 | 30 | 65 |
| XL | 522 | 450 | 75 | 74 | 140 | 590 | 800 | 805 | 45 | 617 | 380 | 995 | 30 | 65 |
All measurements in millimetres unless marked (°) for angles.
