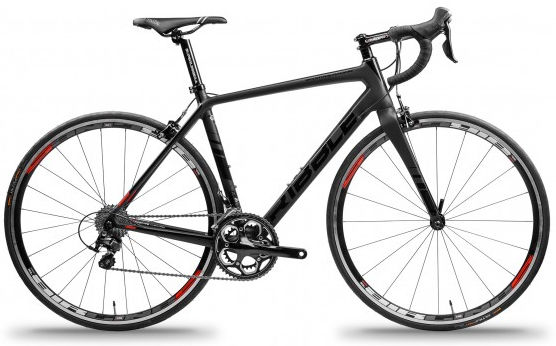

2015 Ribble Sportive Racing geometry
Full frame geometry for the 2015 Ribble Sportive Racing, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 535 | 370 | 74.5 | 72 | 130 | 518 | 470 | 70 | 572 | 410 | 972 | 45 | 61 |
| S | 560 | 378 | 74 | 72.5 | 152 | 539 | 500 | 70 | 584 | 410 | 984 | 45 | 58 |
| M | 585 | 385 | 73.5 | 73 | 176 | 558 | 530 | 70 | 593 | 410 | 993 | 45 | 55 |
| L | 610 | 393 | 73 | 73 | 202 | 580 | 560 | 70 | 609 | 410 | 1009 | 45 | 55 |
| XL | 635 | 400 | 72.5 | 73 | 229 | 600 | 590 | 70 | 624 | 410 | 1024 | 45 | 55 |
All measurements in millimetres unless marked (°) for angles.
