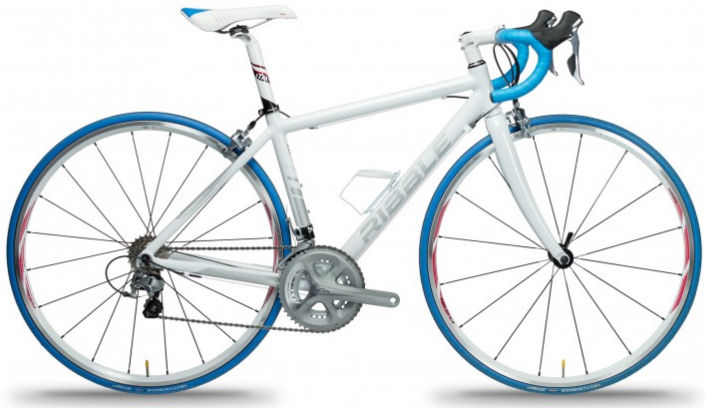

2016 Ribble Sportiva 7005 geometry
Full frame geometry for the 2016 Ribble Sportiva 7005, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 44 | 519 | 371 | 74.5 | 71 | 120 | 515 | 440 | 75 | 412 | 976 | 45 |
| 48 | 539 | 375 | 74 | 71.5 | 140 | 530 | 480 | 75 | 412 | 983 | 45 |
| 52 | 560 | 378 | 73.5 | 72 | 160 | 545 | 520 | 75 | 412 | 989 | 45 |
All measurements in millimetres unless marked (°) for angles.
