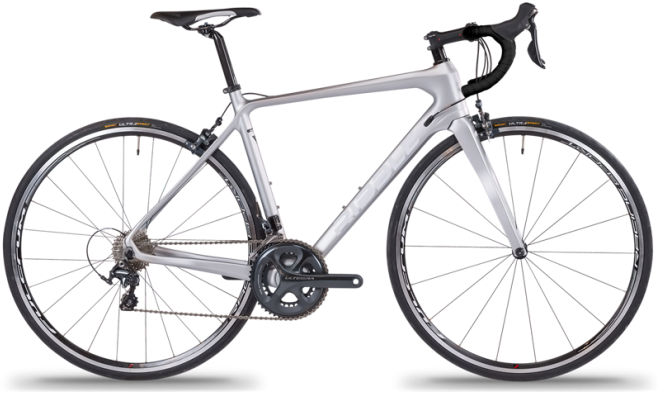

2017 Ribble R872 MKII geometry
Full frame geometry for the 2017 Ribble R872 MKII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 505 | 375 | 74.5 | 72 | 102 | 515 | 460 | 748 | 71 | 406 | 961 | 43 | 65 |
| S | 525 | 382 | 74.1 | 72.2 | 123 | 532 | 490 | 774 | 71 | 406 | 973 | 43 | 64 |
| M | 545 | 389 | 73.7 | 72.4 | 145 | 548 | 510 | 797 | 69 | 406 | 985 | 43 | 63 |
| L | 565 | 396 | 73.3 | 72.6 | 165 | 566 | 535 | 821 | 69 | 406 | 997 | 43 | 62 |
| XL | 585 | 403 | 72.9 | 73.3 | 183 | 583 | 555 | 842 | 69 | 406 | 1000 | 40 | 60 |
All measurements in millimetres unless marked (°) for angles.
