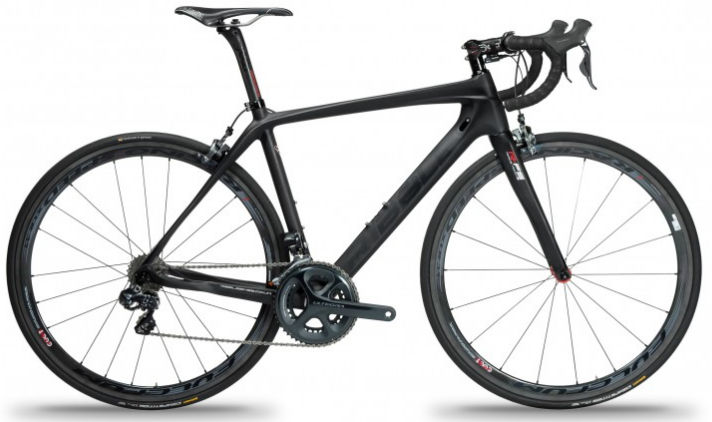

2016 Ribble R872 MK I geometry
Full frame geometry for the 2016 Ribble R872 MK I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 46 | 506 | 375 | 74.5 | 72 | 102 | 515 | 462 | 71 | 566 | 406 | 961 | 43 |
| 48 | 529 | 381 | 74.1 | 72.2 | 126 | 532 | 480 | 71 | 577 | 406 | 973 | 43 |
| 50 | 546 | 389 | 73.7 | 72.4 | 145 | 548 | 498 | 69 | 589 | 406 | 985 | 43 |
| 52.5 | 566 | 395 | 73.3 | 72.6 | 165 | 565 | 522 | 69 | 600 | 406 | 997 | 43 |
| 54.5 | 586 | 403 | 72.9 | 73.3 | 183 | 583 | 545 | 69 | 604 | 406 | 1000 | 40 |
All measurements in millimetres unless marked (°) for angles.
