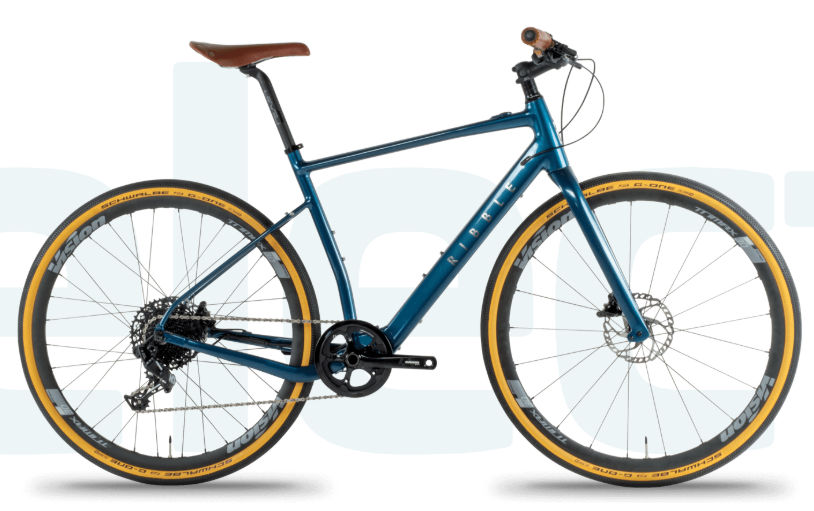

2019 Ribble Hybrid Ale geometry
Full frame geometry for the 2019 Ribble Hybrid Ale, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 530 | 390 | 73 | 71 | 122 | 552 | 410 | 50 | 608 | 436 | 1039 |
| M | 571 | 405 | 72.5 | 71 | 165 | 585 | 450 | 50 | 637 | 436 | 1068 |
| L | 591 | 415 | 72.5 | 71 | 190 | 600 | 490 | 50 | 654 | 436 | 1085 |
| XL | 630 | 430 | 72 | 71 | 230 | 634 | 540 | 50 | 682 | 436 | 1113 |
All measurements in millimetres unless marked (°) for angles.
