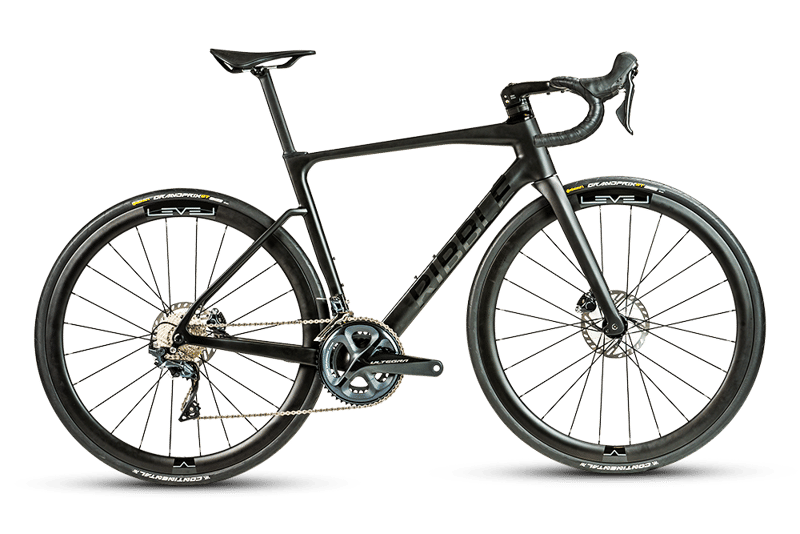

2022 Ribble Endurance SL R Disc geometry
Full frame geometry for the 2022 Ribble Endurance SL R Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 495 | 372 | 75 | 71 | 100 | 505 | 410 | 68 | 581 | 415 | 986 | 55 |
| XS | 498 | 382 | 74.5 | 71 | 110 | 520 | 470 | 68 | 581 | 415 | 987 | 53 |
| S | 521 | 385 | 74 | 72 | 130 | 535 | 490 | 68 | 584 | 415 | 989 | 45 |
| M | 541 | 390 | 73.6 | 72.5 | 150 | 550 | 510 | 68 | 591 | 415 | 997 | 45 |
| L | 562 | 396 | 73.3 | 73 | 170 | 570 | 530 | 68 | 598 | 415 | 1004 | 45 |
| XL | 582 | 401 | 73 | 73.3 | 190 | 585 | 550 | 68 | 607 | 415 | 1012 | 45 |
All measurements in millimetres unless marked (°) for angles.
