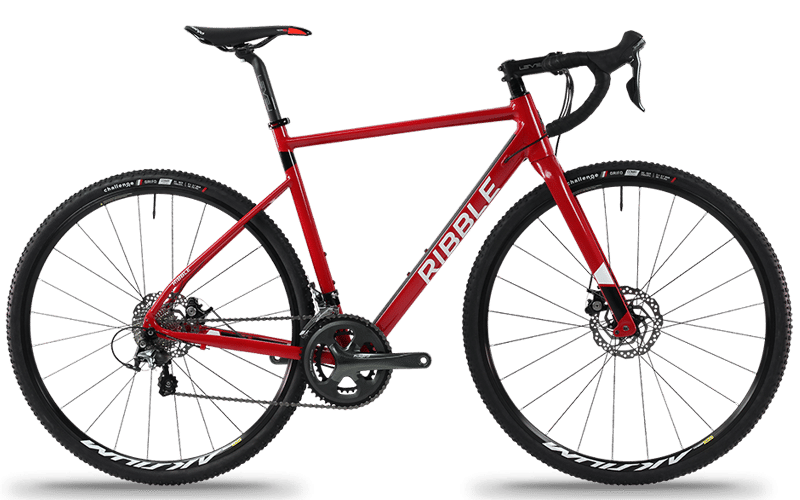

2019 Ribble CX geometry
Full frame geometry for the 2019 Ribble CX, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 530 | 378 | 75 | 71 | 110 | 520 | 490 | 68 | 588 | 425 | 1004 | 53 |
| S | 547 | 380 | 74.5 | 71.5 | 125 | 535 | 520 | 68 | 589 | 425 | 1005 | 45 |
| M | 563 | 384 | 74 | 72 | 140 | 545 | 540 | 68 | 595 | 425 | 1011 | 45 |
| L | 582 | 387 | 73.5 | 72 | 160 | 565 | 565 | 68 | 605 | 425 | 1020 | 45 |
| XL | 602 | 391 | 73.3 | 72.3 | 180 | 580 | 585 | 68 | 612 | 425 | 1028 | 45 |
All measurements in millimetres unless marked (°) for angles.
