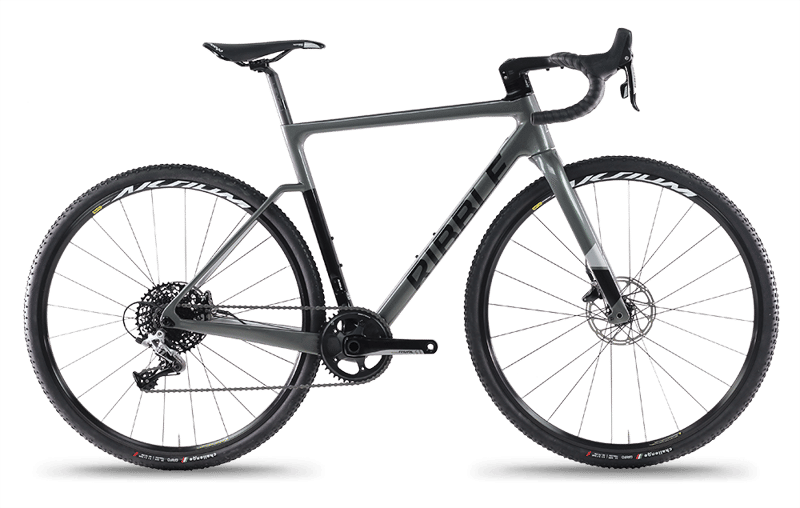

2021 Ribble CX SL geometry
Full frame geometry for the 2021 Ribble CX SL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 526 | 376 | 75 | 71 | 110 | 520 | 470 | 64 | 595 | 425 | 1010 | 50 |
| S | 547 | 378 | 74 | 71.5 | 130 | 535 | 500 | 64 | 596 | 425 | 1012 | 50 |
| M | 558 | 380 | 73.5 | 72 | 140 | 545 | 520 | 64 | 597 | 425 | 1013.5 | 50 |
| L | 576 | 384 | 73 | 72 | 160 | 560 | 540 | 64 | 601 | 425 | 1024 | 50 |
| XL | 596 | 393 | 73 | 72 | 180 | 575 | 560 | 64 | 620 | 425 | 1038 | 50 |
All measurements in millimetres unless marked (°) for angles.
