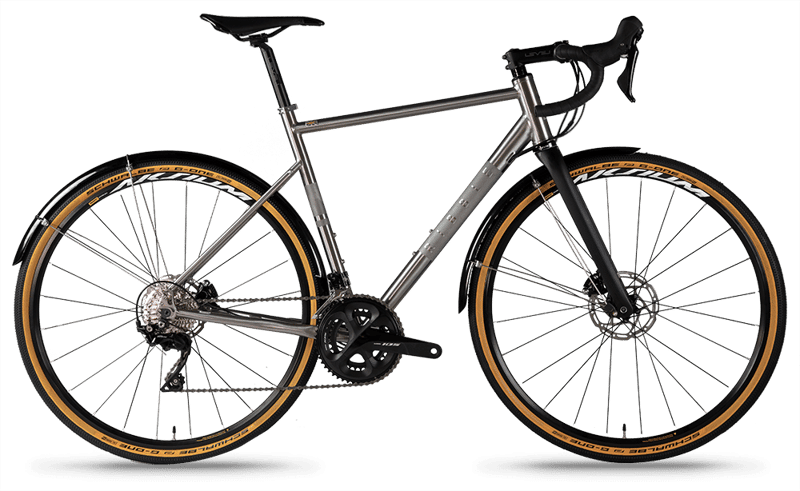

2021 Ribble CGR Ti geometry
Full frame geometry for the 2021 Ribble CGR Ti, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|
| XS | 556 | 375 | 74 | 71 | 140 | 530 | 510 | 435 | 1026.5 |
| S | 568 | 377 | 73.5 | 71.5 | 150 | 545 | 530 | 435 | 1026.8 |
| M | 589 | 380 | 73 | 72 | 170 | 555 | 555 | 435 | 1031.8 |
| L | 606 | 384 | 72.5 | 72 | 190 | 570 | 580 | 435 | 1042.5 |
| XL | 625 | 395 | 72.5 | 72 | 210 | 590 | 600 | 435 | 1053 |
All measurements in millimetres unless marked (°) for angles.
