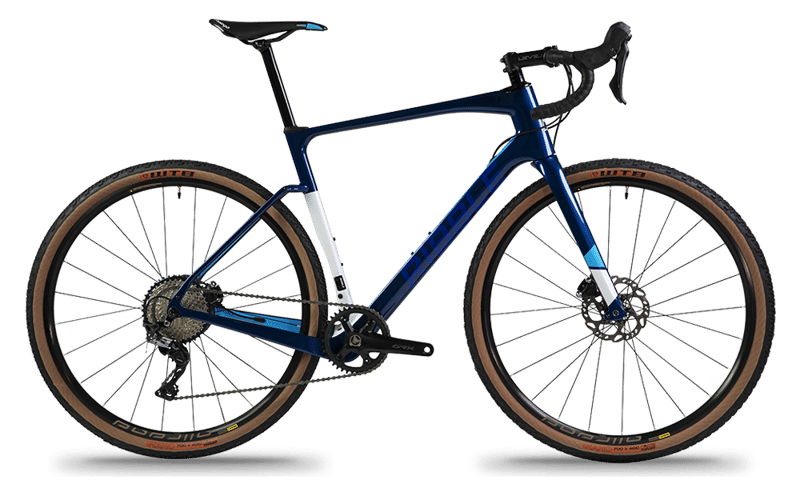

2021 Ribble CGR SL geometry
Full frame geometry for the 2021 Ribble CGR SL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 537 | 371 | 74.5 | 70.5 | 130 | 520 | 460 | 69 | 593 | 435 | 1019 | 50 |
| S | 548.5 | 375 | 74 | 71 | 140 | 540 | 480 | 69 | 599 | 435 | 1025 | 50 |
| M | 561 | 379 | 73.5 | 71.5 | 155 | 550 | 500 | 69 | 600.7 | 435 | 1025 | 50 |
| L | 592 | 389 | 73 | 72 | 180 | 570 | 520 | 69 | 615.5 | 435 | 1041 | 50 |
| XL | 610.7 | 396 | 72.5 | 72 | 200 | 590 | 540 | 69 | 616 | 435 | 1054 | 50 |
All measurements in millimetres unless marked (°) for angles.
