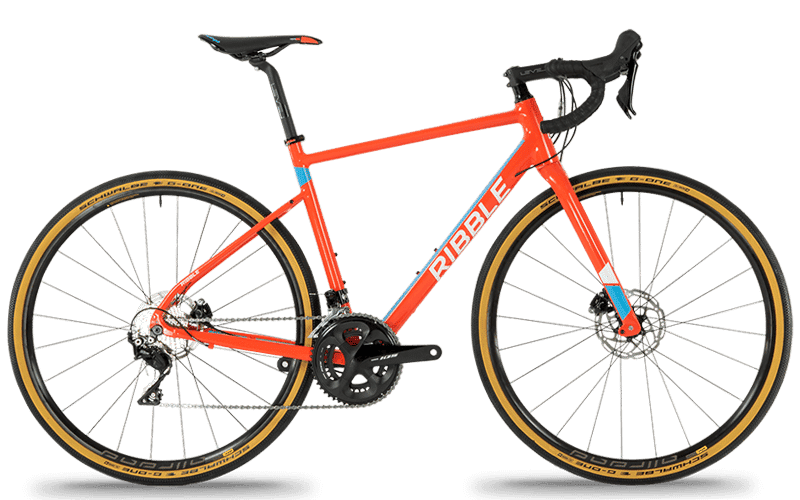

2019 Ribble CGR AL geometry
Full frame geometry for the 2019 Ribble CGR AL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 556 | 365 | 74.5 | 70.5 | 140 | 520 | 470 | 69 | 595 | 435 | 1022 | 50 |
| S | 568 | 377 | 74 | 71 | 150 | 540 | 510 | 69 | 605 | 435 | 1231 | 50 |
| M | 589 | 380 | 73.5 | 71.5 | 170 | 555 | 530 | 69 | 611 | 435 | 1037 | 50 |
| L | 610 | 383 | 73 | 72 | 190 | 570 | 555 | 69 | 606 | 435 | 1042 | 50 |
| XL | 620 | 394 | 72.5 | 72 | 200 | 590 | 580 | 69 | 616 | 435 | 1055 | 50 |
All measurements in millimetres unless marked (°) for angles.
